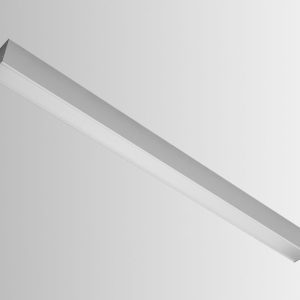

Galvin Series Linear Lights Main

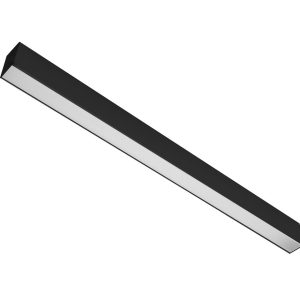

Galvin Linear Lights Add 01

Galvin Linear Lights Add 02

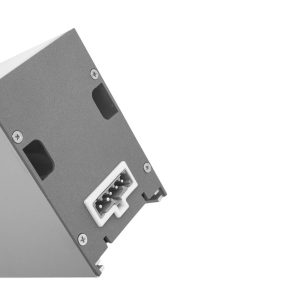

Galvin Linear Lights Add 03

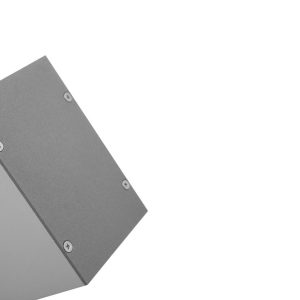

Galvin Linear Lights Add 04

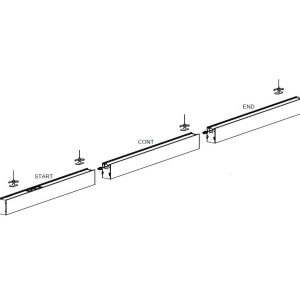

Galvin Linear Lights Add 05

Galvin Series Linear Lights Main

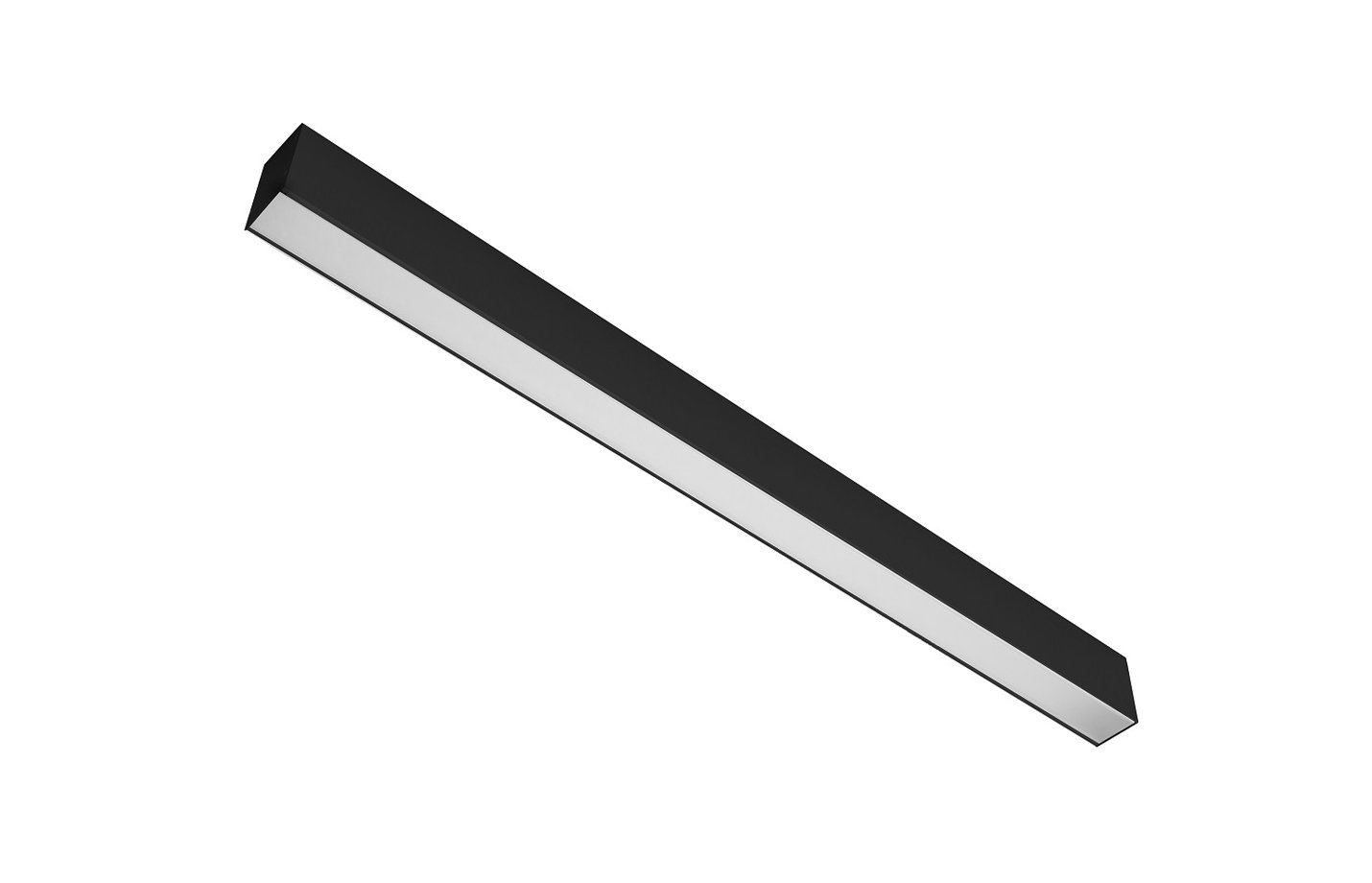

Galvin Linear Lights Add 01

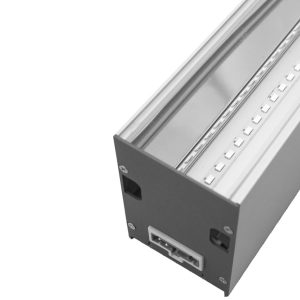

Galvin Linear Lights Add 02

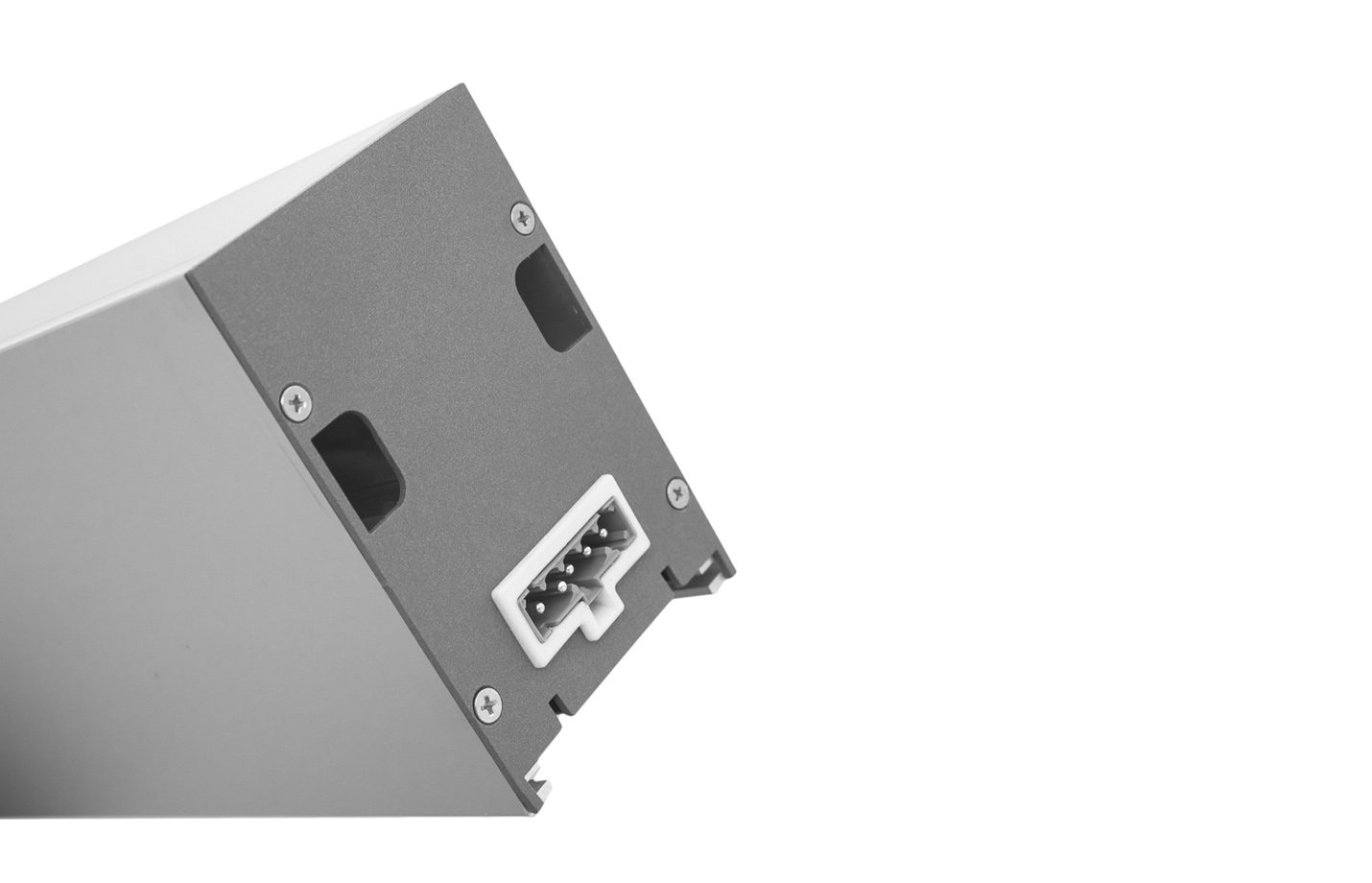

Galvin Linear Lights Add 03

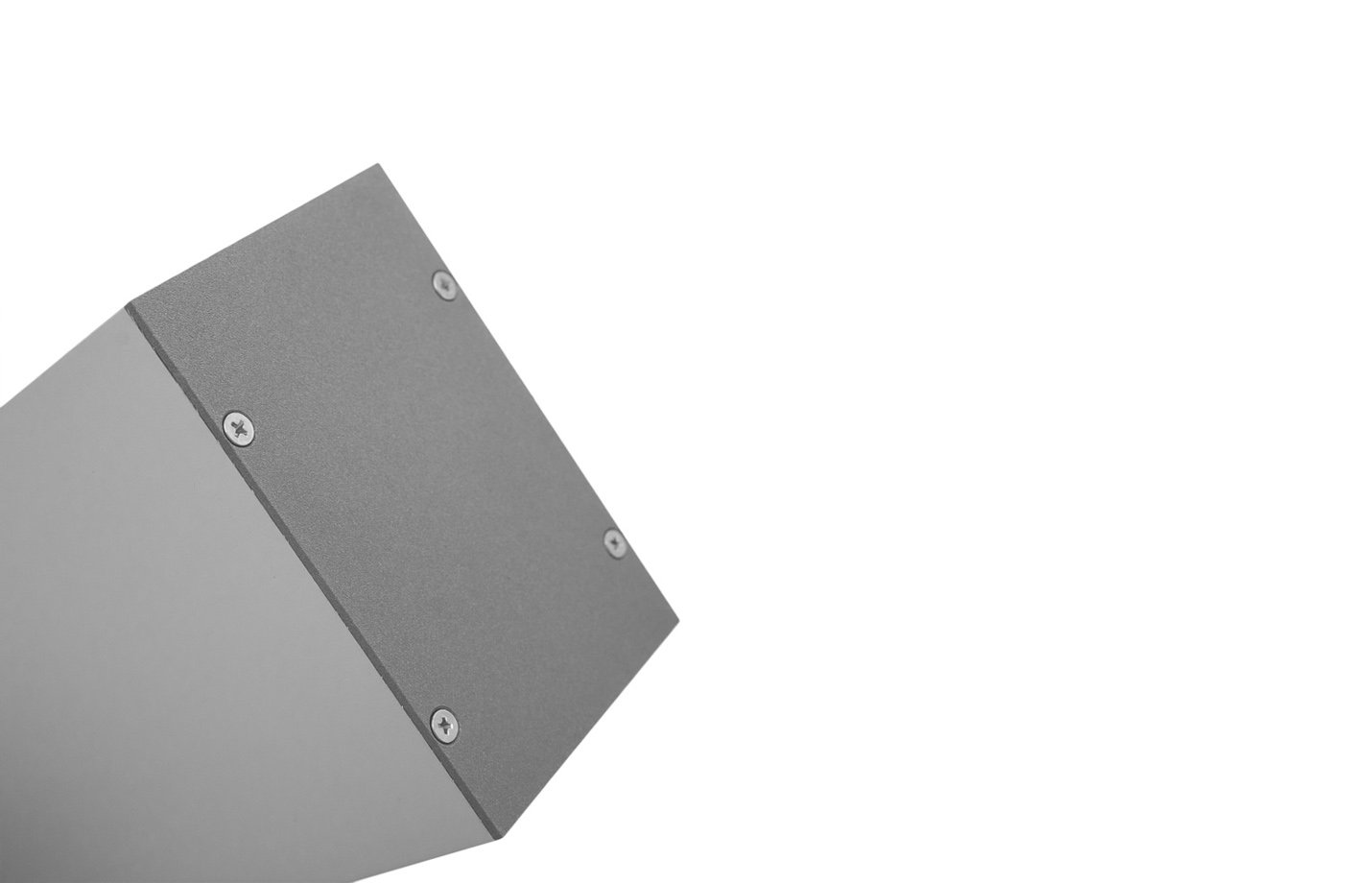

Galvin Linear Lights Add 04

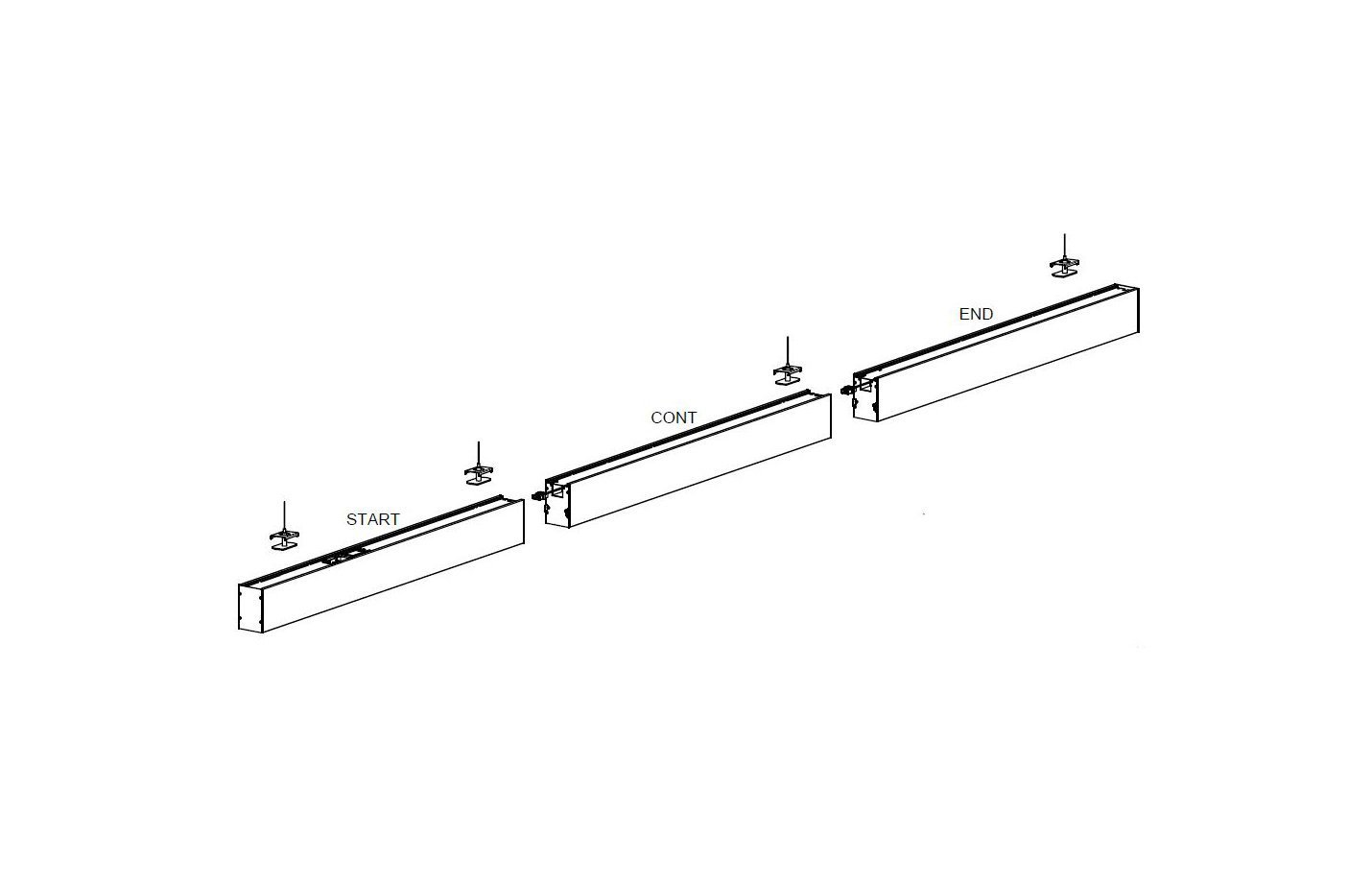

Galvin Linear Lights Add 05

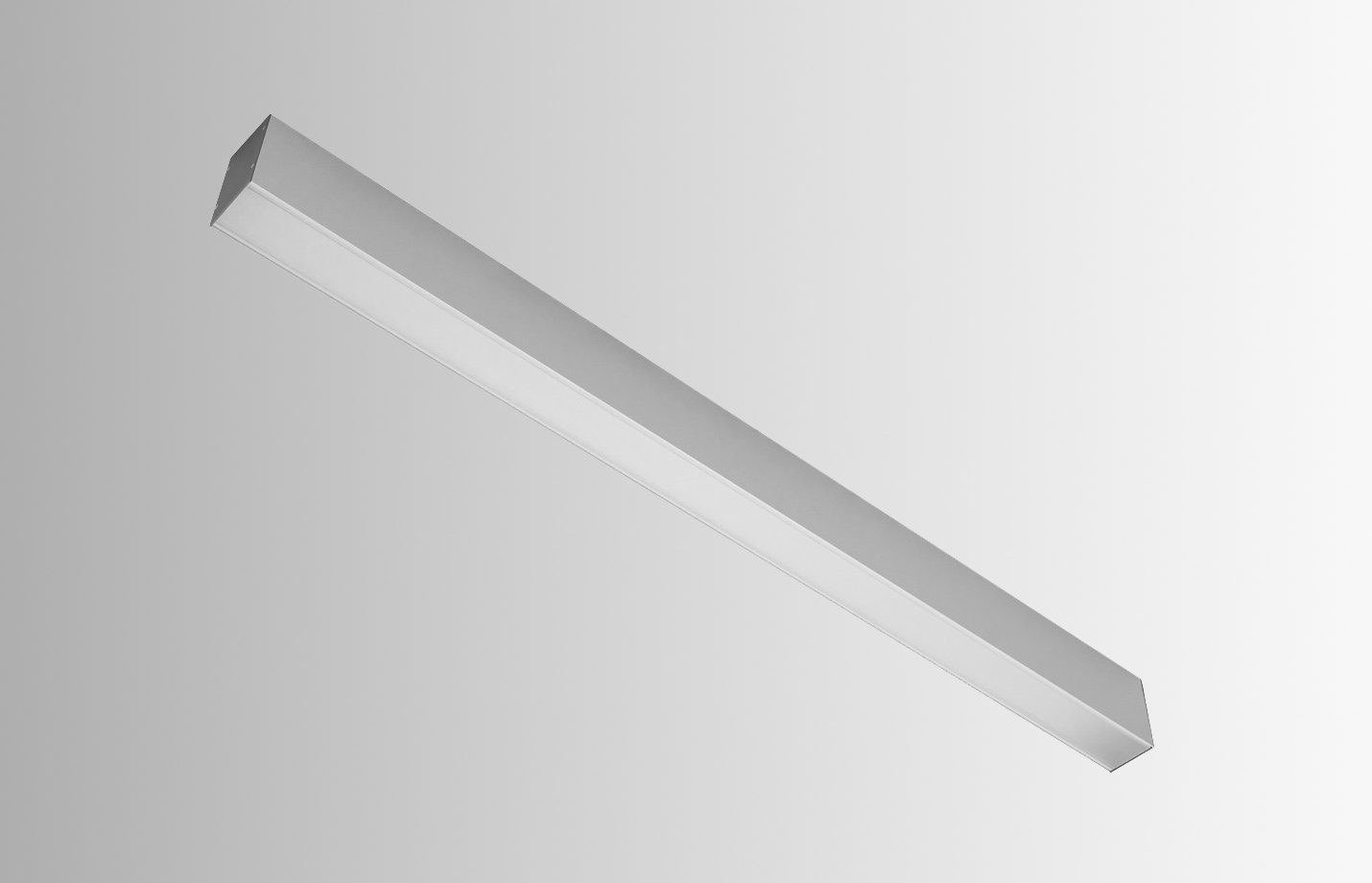

Galvin Series Linear Lights

Aluminium profile finished in RAL9006, also available in white or black on request
Opal cover ACRYL SATINE
Mid power LED
CRI 80 (CRI 90 on request)

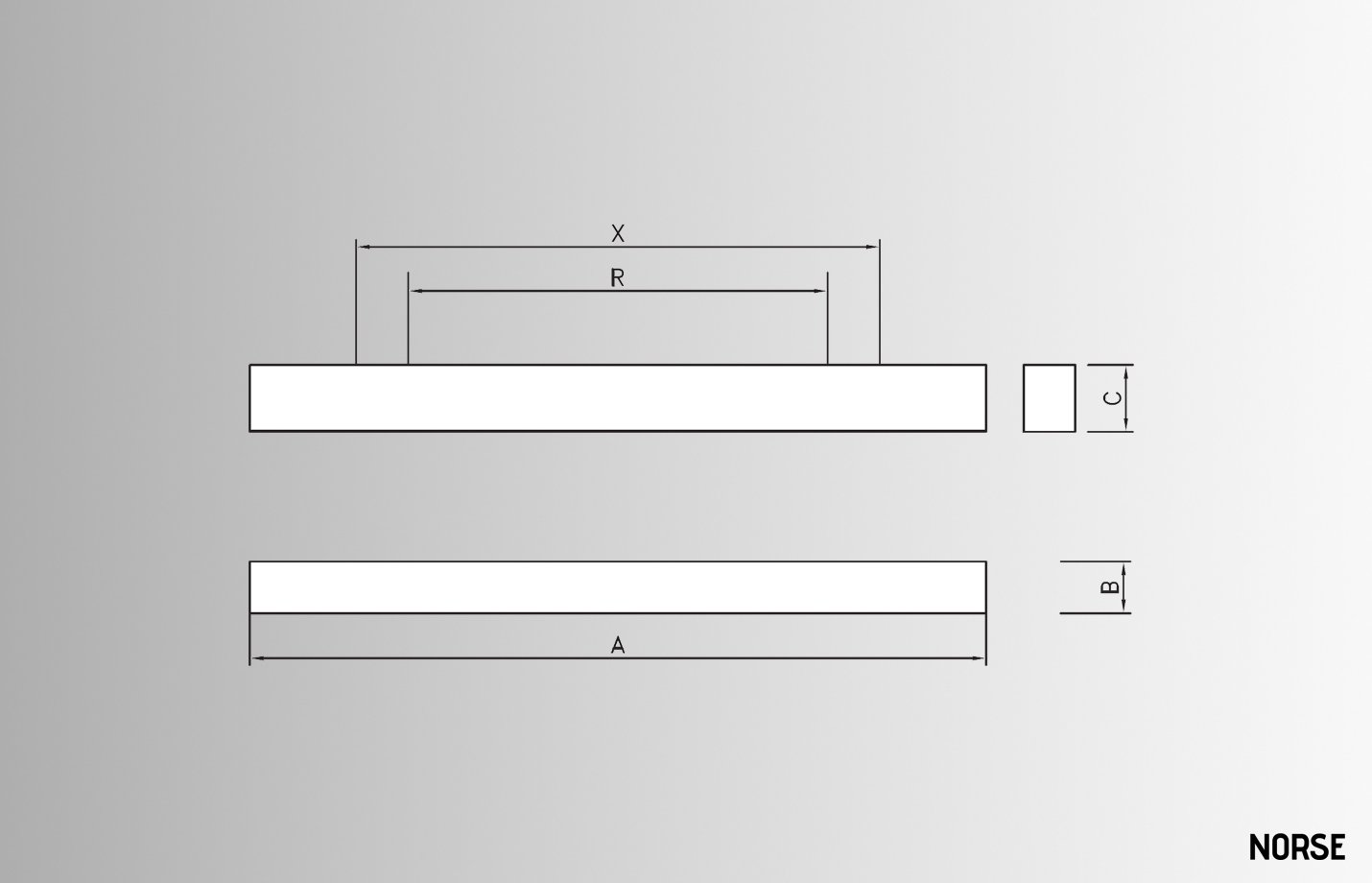

Dimensions (MM): L592xW66xH100MM (M1) | L1185xW66xH100MM (M2) | L1485xW66xH100MM (M3)
Power (W): 16W, 24W | 23W, 33W, 40W, 48W | 33W, 42W, 64W
Light Output (lm): 2000lm, 2800lm | 3100lm, 4200lm, 5000lm, 5900lm | 4500lm, 5400lm, 8200lm
Color Temperature (K): 3000K, 4000K, 5700K
Installation: Surface Mounting, Suspended Mounting
Lamp Type: LED
IP: IP20
Mains voltage: 220-240V
Mains frequency: 50 – 60Hz
Colour rendering (Ra): 80
Lifetime: 80,000H
Housing Color: Grey, Black
Accessories (Optional): Dali, Dim 1-10V
Standard Warranty: 2 Years
Extended Warranty: 3 years

Note: Minimum Order Quantities may apply

Galvin Series Linear Lights Datasheet

Select Installation:

Select Dimension (MM):

Select Power (W):

Select Color Temperature (K):

Select Housing Finish:

Select Option:

Clear

Request a price quote

SKU: OL-GALVIN Category: LED Linear Lights Tags: Hotel Lighting, Office Lighting, Retail Lighting - Tag, Shopping Centres Lighting
