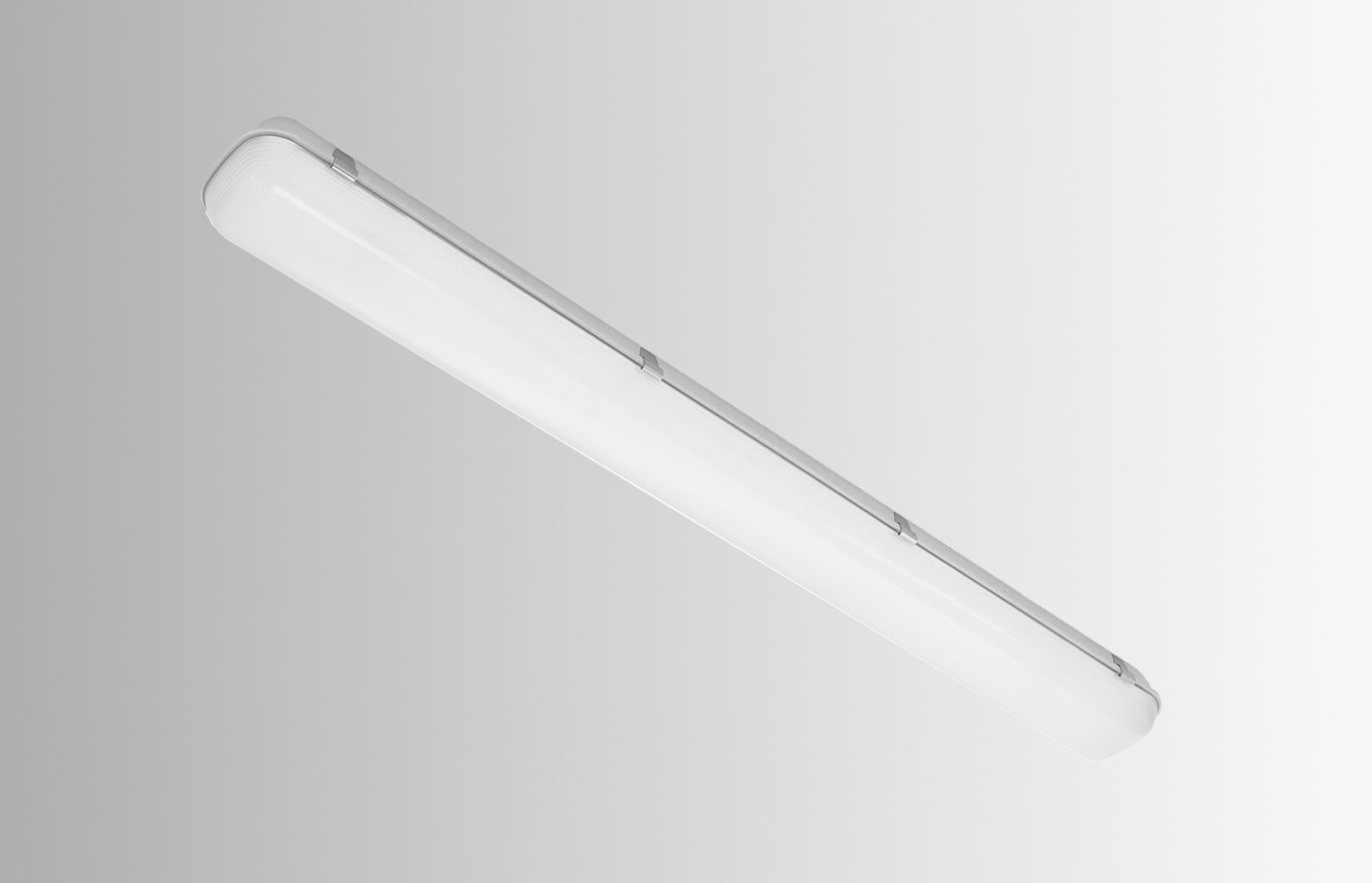

Colin Series Waterproof Batten Light Main

Colin Series Waterproof Batten Light

High quality glass reinforced pressed polyester body + galvanized metal sheet, INOX clips
Polycarbonate opal cover
Mid power LED with constant current driver CRI 80 (CRI 90 on request)
Surface installation; Suspension kit available for suspended installation

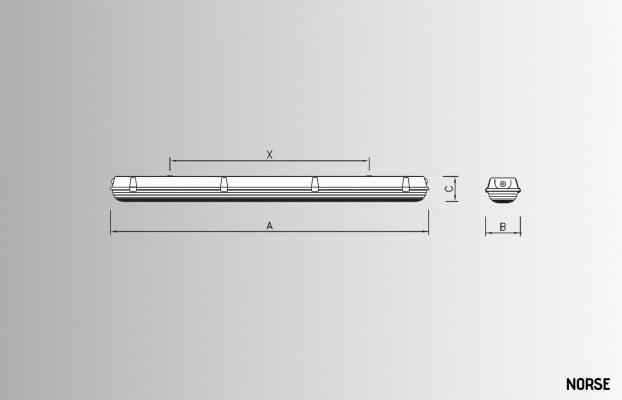

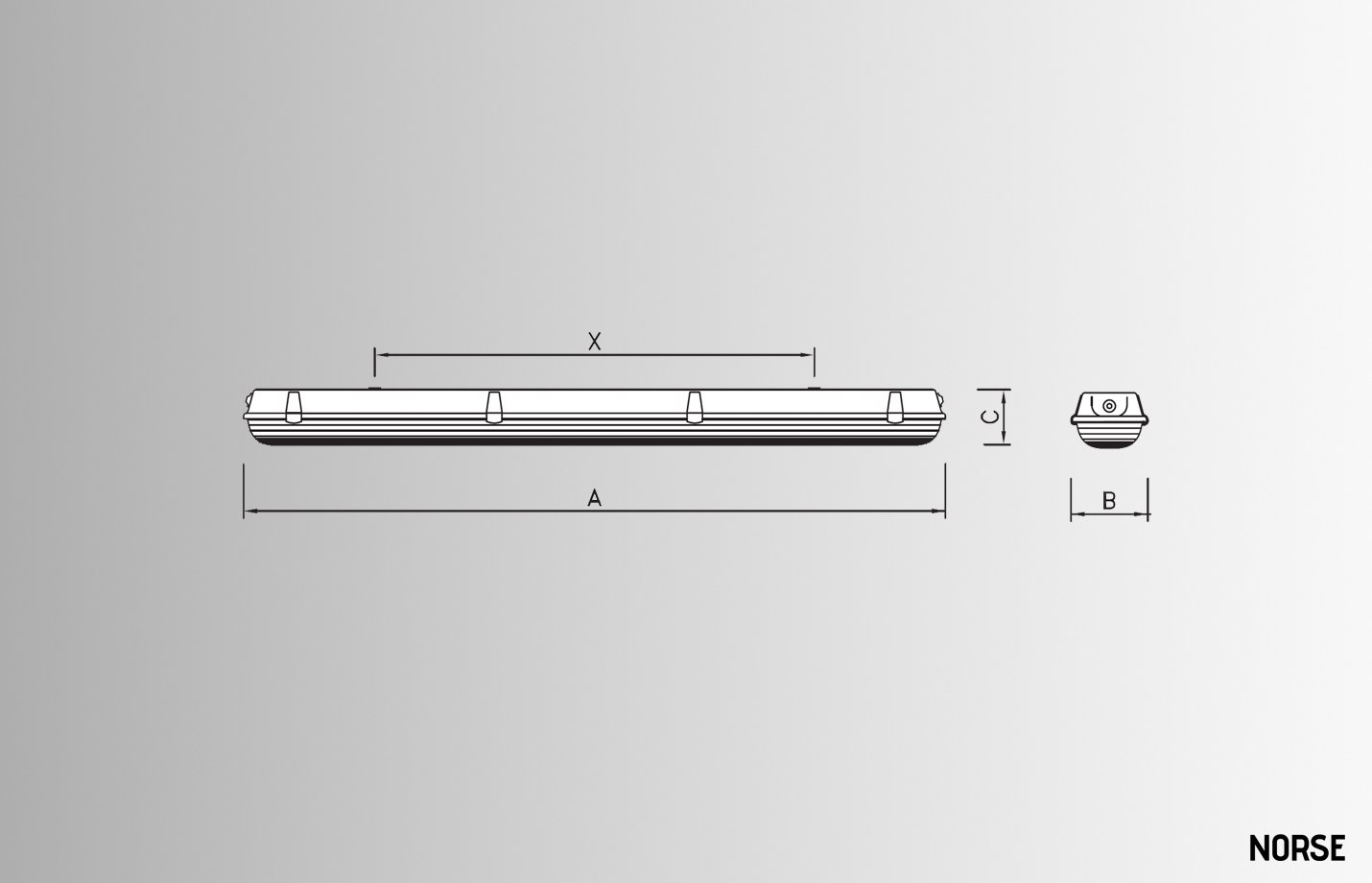

Dimensions (MM): L675LxW135xH100MM (M1) | L1275LxW84xH100MM (M2) | L1275LxW135xH100MM (M3) | L1575LxW84xH100MM (M4) | L1575LxW135xH100MM (M5)
Power (W): 11W, 20W | 20W | 40W | 32W | 50W, 68W
Light Output (lm): 1450lm, 2750lm | 2700lm | 5500lm | 4400lm | 7500lm, 10200lm
Color Temperature (K): 3000K, 4000K, 5700K
Installation: Suspended Mounting, Surface Mounting
Lamp Type: LED
IP: IP65
Mains voltage: 220-240V
Mains frequency: 50 – 60Hz
Colour rendering (Ra): 80
Lifetime: 80,000H
Options: Dali
Accessories: Universal 4-wires suspension kit
Standard Warranty: 2 Years
Extended Warranty: 3 Years

Note: Minimum Order Quantities may apply

Colin Series Waterproof Batten Light Datasheet

Select Dimension (MM):

Select Power (W):

Select Color Temperature (K):

Select Option:

Select Accessories:

Clear

Request a price quote

SKU: OL-COLIN Category: Waterproof Batten LED Light Tags: Industry Lighting, Warehouses Lighting
