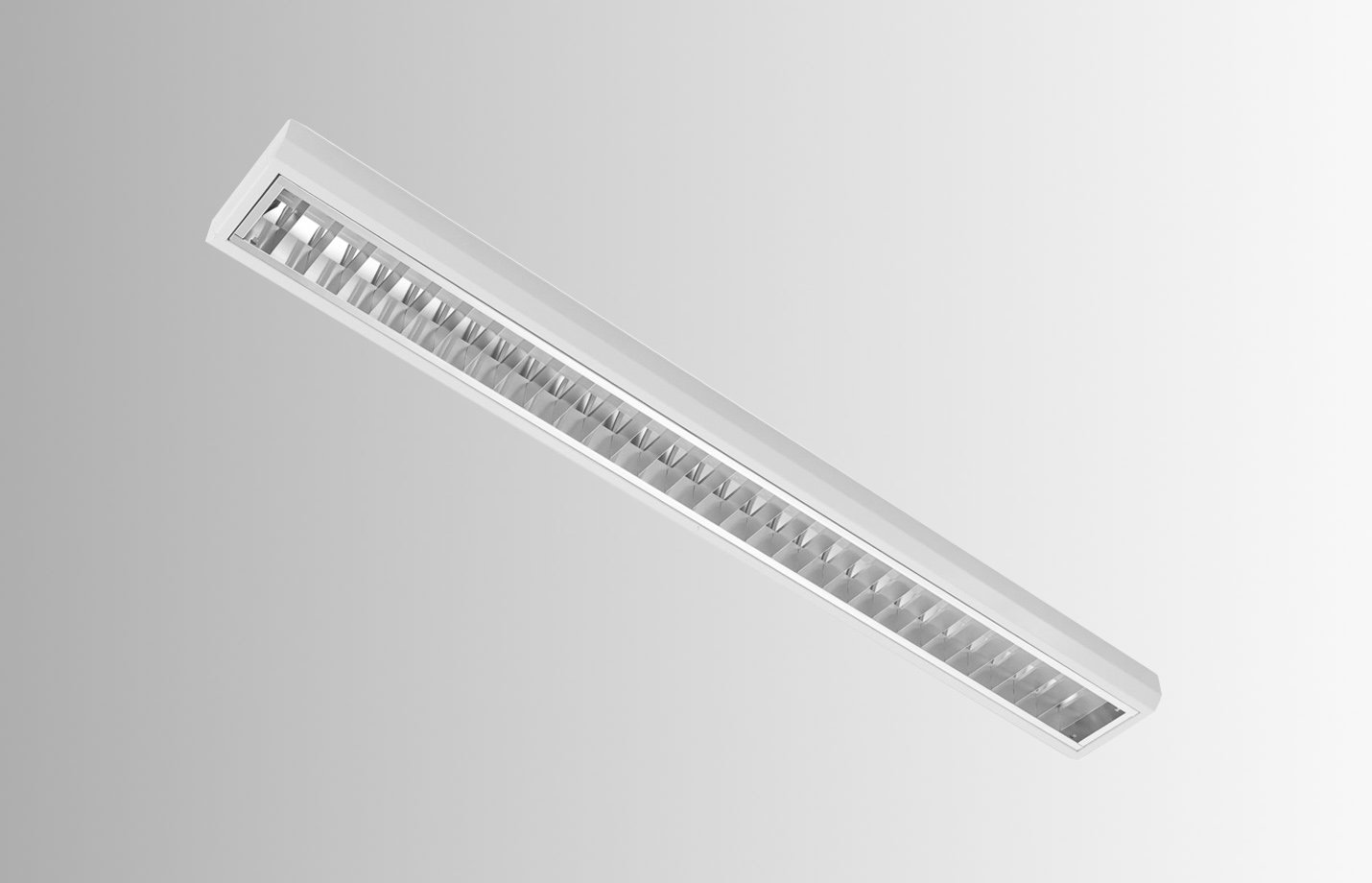

Alvin Series Linear Lights Main

Alvin Series Linear Lights

White painted metal sheet
Optics: KV – Double parabolic louvre of highly polished aluminium, with opal cover of LED modules.
Mid power LED
CRI 80 (CRI 90 on request)

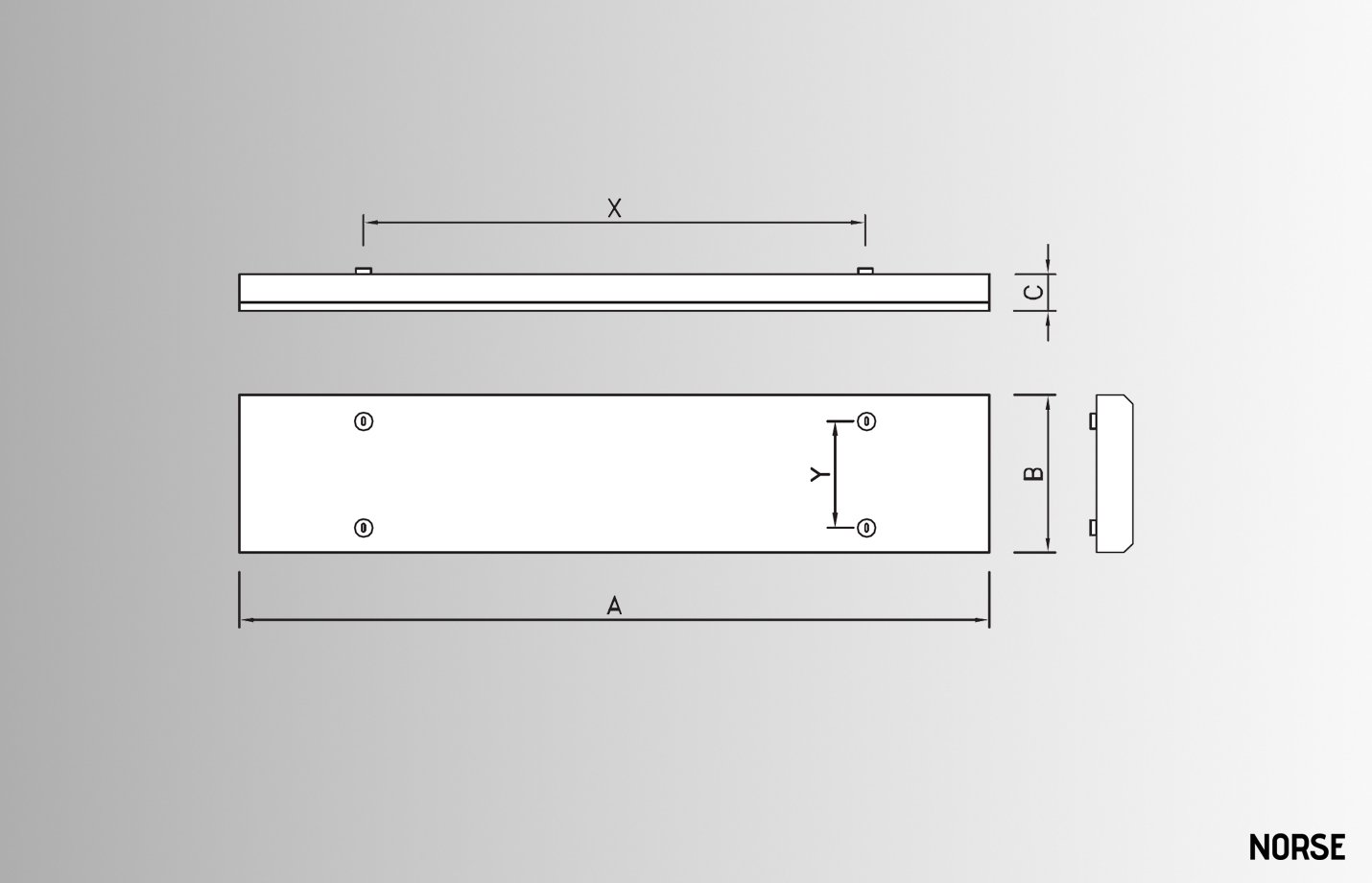

Dimensions (MM): L611xW410xH52MM (M1) (L4) | L1210xW153xH52MM (M2) (L1) | L1210xW238xH52MM (M3) (L2) | L1510xW153xH52MM (M4) (L1) | L1510xW238xH52MM (M5) (L2)
Power (W): 27W, 37W | 19W | 26W, 37W | 30W | 41W, 58W
Light Output (lm) (KV): 4200lm | 2200lm | 3200lm, 4300lm | 3400lm | 5200lm, 6900lm
Color Temperature (K): 3000K, 4000K, 5700K
Installation: Surface Mounting
Lamp Type: LED
IP: IP20
Mains voltage: 220-240V
Mains frequency: 50 – 60Hz
UGR: <19
Colour rendering (Ra): 80
Lifetime: 80,000H
Optics: KV – Double parabolic louvre of highly polished aluminium.
Options: Dali
Housing Color: White (Grey or Black available on request)
Standard Warranty: 2 Years
Extended Warranty: 3 Years

Note: Minimum Order Quantities may apply

Alvin Series Linear Lights Datasheet

Select Dimension (MM):

Select Power (W):

Select Color Temperature (K):

Select Option:

Clear

Request a price quote

SKU: OL-ALVIN Category: LED Linear Lights Tags: Hotel Lighting, Office Lighting, Retail Lighting - Tag, Shopping Centres Lighting
